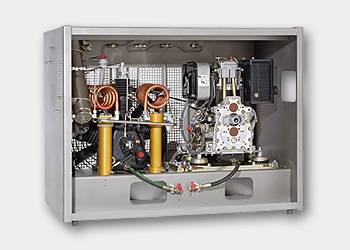

The LW 450 D Basic is ideal for use on a remote island, a safari boat or in an autonomous truck.

This 450 litre compressor is equipped with a hatz diesel motor, 12 volt control, automatic start, automatic condensate drain and an integrated filling unit with four hoses and filling valves.

The Basic version includes an integrated filling device c/w four filling hoses and filling valves.

  • Hatz 10kW diesel engine c/w hand start
  • Original Hatz diesel tank
  • Wet painted steel housing (RAL 7004)
  • Manuel condensate drain
  • Automatic idle speed selector when end pressure is reached (compressor switches to full speed)
  • 4x Filling hose and filling valve
  • Pressure maintaining and non-return valve
  • All pistons c/w steel piston rings
  • Low pressure oil pump
  • Oil- / water separators after each stage
  • Safety valves after each stage
  • 3x concentric suction/pressure valves
  • Filling pressure to your choice (200 or 300 bar)
  • Connections to your choice
    (DIN 200 bar or 300 bar, CGA 200 bar or 300 bar and INT)
  • Breathing air purification an accordance to EN 12021
  • 200 and 300 bar parallel filling pressures
  • Oil pressure gauge
  • Intermediate pressure gauges
  • Hour counter
  • Oil pressure monitoring c/w auto shut down
  • 0.8 ltr. Prefilter (Enlarged the lifetime of the filter by approx. 5 hours)
  • Automatic condensate drain
  • Additional high pressure outlet
Data sheet230.58 KB
Technical Data

LW 450 D Basic

Type: Air cooled piston compressor
Capacity [l/min] / [Nm³/h] / [cfm]: 450 / 27.0 / 15.9
Max. Pressure [bar]: 350
RPM [1/min]: 1100
No of cylinders / No of stages: 3 / 3
Prime mover type: Diesel engine, hand start
Drive power [kW]: 10.0
Cooling air requirement [m³/h]: 3300
Lubrication type: Oil pump + Splash oil
Oil capacity [l] / Oil pressure [bar]: 2.2 / 2.2 (+/- 0.5)
Operating temperature [°C]: +5°C to +45°C
Filter capacity [m³ at +20°C]: 750 (approx. 28 h)
Dimensions W x D x H [mm]: 1270 x 740 x 1000
Weight [kg]: 400
Noise level (measured at 1 m) [dB(A)]: 95
